The diversity of the future in one device

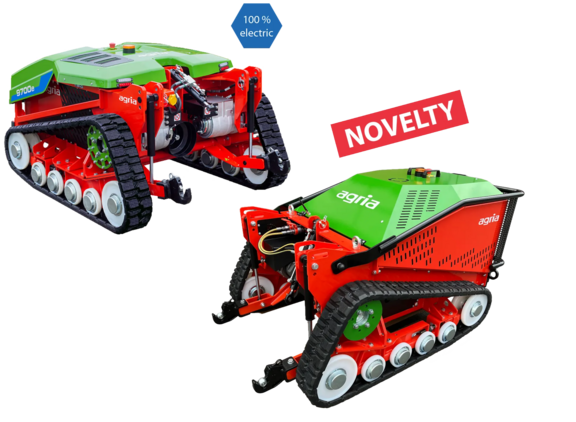

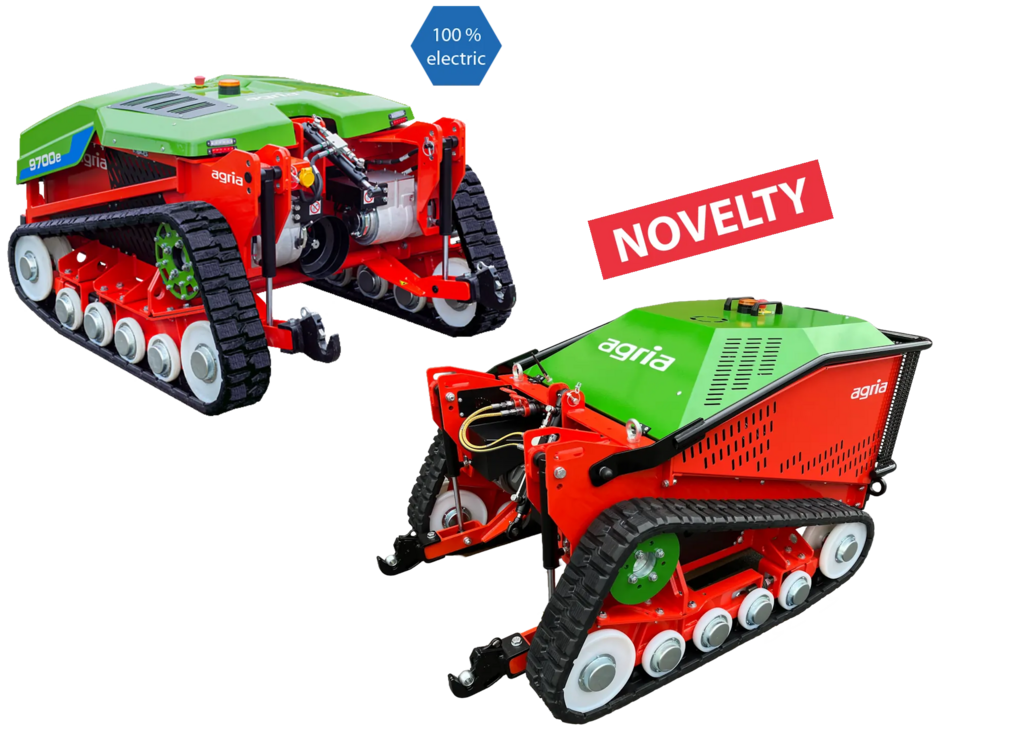

The all-electric, radio-controlled agria 9700e battery-powered implement carrier represents a groundbreaking innovation with its cutting-edge technology. With a significantly reduced noise level during operation, this machine contributes to the well-being of people and animals in terms of noise reduction.
The agria 9700D was developed as a versatile implement carrier for a wide range of tasks. Its dual PTO and Category 1 three-point linkage allow for the use of numerous different attachments.
During the development of the agria 9700D, we placed particular emphasis on a robust and maintenance-friendly design, in addition to its versatility. The machine can be opened on several sides for easy access to the components.
Thanks to its Category 1 three-point linkage, both the agria 9700e and the agria 9700e can be used flexibly in a wide variety of applications. Implements weighing up to 300 kg can be attached via the hydraulic connections without requiring continuous hydraulic power. Front and rear implements from various manufacturers can be attached in just a few steps. Our agria implements can also be used via an adapter.
Green space maintenance
The agria 9700e adapts to any Implement. With the adjustable PTO speed from 100 to 1,000 rpm, the agria 9700e adapts perfectly to the requirements of the Implement. Whether mulcher, Mower drive or Cutterbar, any implement in the recommended performance class can be mounted on the machine. Thanks to the option of changing the direction of travel, both front and rear attachments can be used.
Area maintenance
Thanks to the agria 9700e's all-electric Drive, work in quiet zones such as care facilities, schools, zoos or even in the early hours of the morning can be carried out almost silently. In addition to classic municipal tasks such as winter maintenance, area maintenance and green space maintenance, the agria 9700e is also suitable for a wide variety of transportation tasks. The machine demonstrates its maneuverability particularly well on narrow access roads and paths.
Forest
In particularly sensitive environments such as forestry, environmentally friendly work is particularly important. With a low machine weight of approx. 780 kg and optimum speed distribution thanks to the crawler chassis, the agria 9700e works very gently on the ground. The low machine height and maneuverability of the Implement carrier make it possible to work in places where large tractors cannot be used. The use of small quantities of biohydraulic oil ensures compliance with legal requirements.
Accumulator information
Machine equipment and information
- High-performance common-rail diesel engine
- Agria track technology proven over decades
- Maximum versatility with implements thanks to a standard three-point hitch, dual Zapfwellen, and verstellbare left/right rotation direction
- Strong traction and maneuverability on steep slopes thanks to electric drive
- Maximum efficiency in power transmission due to the elimination of the Hydraulic system
- Interchangeable tank system and only 2 liters of bio-hydrostat.transmiss.oil for maximum safety in water protection areas
- Less maintenance thanks to electric drive and the elimination of a diesel particulate filter
- Well-thought-out maintenance concept with smart component accessibility
Options
![[Translate to Englisch:] agria 9739111 Additional hydraulic connector for equipment**](/fileadmin/_processed_/a/6/csm_agria_9739111_Zusaetzlicher_Hydraulikanschluss_1400_bee7f18b01.png "agria 9739111 Additional hydraulic connector for equipment**")
News
Our new agria 9700D: Remote-controlled implement carrier with Diesel power
New at agria: With the 9700D, we are introducing a powerful, diesel-powered, remote-controlled implement carrier to the market. Our new product will…
agria 9700e and Müthing MU-FM Vario in the ultimate practical test
Silence on the slope! In this video, we test the agria 9700e Remote controlled All-electric-tool-carrier together with the Müthing MU-FM Vario…
Technical data
agria 9700D | |
|---|---|
| Item Number | 9700 211 |
| Engine | Kohler Common Rail Diesel 18.9 kW (25 PS) EU Stage V |
| Torque | 90 Nm at 1,800 rpm |
| Fuel system | 1 x 20 liters; agria interchangeable tank system |
| Traction drive | Stepped and brushless electric drive, 48 V DC, Safety extra-low voltage |
| Speed Settings/ Speed | 4 continuously variable speed ranges selectable from 0–8.5 km/h |
| Brake | Electromechanical fail-safe brake |
| Grade | 50° (119%) – optionally expandable |
| Implement drive | Multi-disc clutch with spur gear |
| Support | Standard three-point hitch (Category 1) o. municipal triangle, floating position possible |
| Zapfwelle | 1,000 u and 540 u/min, left/right rotation |
| Direction of travel | forward/reverse; switching allowed Use of pushed and towed implements |
| Hydraulic system | Lifting capacity for implements up to 300 kg; 400 kg with Rear weight |
| Lifting height and Lifting reach | Lifting height: 130–480 mm* Lifting reach: 350–550 mm* |
| Oil | 2 liters of organic hydrostat.transmiss.oil |
| Radio control unit | Autec-Safety RC system with 2.8-inch color display |
| Range | 300 m (maximum) / 100 m (recommended) |
| Dimensions L x B x H | 180 x 120 x 97 cm |
| Ground pressure | 0.266 kg/cm² |
| Weight | 825 kg without implement, Branch deflector, rear guard |
* depending on the implementation
Videos
F.A.Q. - Frequently asked questions
Search result: 7 Questions
Yes, the Accumulators in the agria 9700e are safe and non-hazardous when used as intended.
As the Accumulators are permanently installed in a steel frame, they cannot be replaced without assembly.
Yes, there are state subsidies. However, these vary from state to state in Germany.
Please contact us if you have any questions about financing. Please use our contact form.
The agria 9700e is not yet able to drive autonomously.
However, this is in preparation.
Cleaning the Cutterbar after every Insert is recommended. The blades should be resharpened regularly. The blade clearance must also be checked regularly and readjusted if necessary. The moving parts must be lubricated according to the maintenance schedule. Please refer to the Operating instructions in our Download Center for the exact details.
The battery life of the agria 9700e depends on the Implement, area of application, surface and environmental conditions.
You can find some examples in our product catalog.
Here you will also find examples of the Accumulator charging times with different Chargers.
The agria 9700e can also be used at a vehicle charging station via an adapter.
A list of the different chargers can be found on the product page and in our configurator.
the agria 9700e is equipped with a modular 24.8 kWh / 480 Ah Lithium-ion Accumulator with 48 V safety extra-low voltage.
The agria 9700e can be fitted with trailed and pushed implements with PTO drive and Cat 1 support (three-point power lift) and a maximum tare weight of 300 kg.
The machine is therefore ideal for the following applications:
- Soil cultivation such as crumbling, milling, levelling, ..
- Green space maintenance: mulching, mowing, Weed removal: mechanical weed removal with brushes, ..
- Area maintenance: Snow clearing, snow sweeping, salt spreading, Snow throwers, ..
- Forestry work
- and much more. Please contact us about your requirements using our contact form.
There is also an additional hydraulic connection for implements (without permanent hydraulic power take-off).
The PTO power is roughly comparable to a 30 hp tractor and can be adjusted in both clockwise and counter-clockwise rotation in steps of 100 from 100 to 1,000 revolutions.
Due to constant further development, we reserve the right to make changes to the scope of delivery in terms of form, technology and equipment. No claims can therefore be derived from the information and illustrations. Some product illustrations do not correspond to the delivery version and may contain accessories.
Weight specifications: without fuel, without oil and partly without Set of tires.
