agria 9500-90

Remote controlled high grass rotary mulcher

The device for all occasions

With the agria 9500-90, the agria 9500 track mower series has been expanded to include a high-performance model with a 90 cm working width. This further increases the efficiency of the already powerful machines. With a 24 hp Kawasaki-Motor and a tilt angle of up to 50°, the machine is ideal for working on uneven terrain. The agria 9500-90 not only impresses with its high area output, but also with its high performance in dense undergrowth and perennial vegetation. The remote control with Inclinometer protects the operator from direct stresses such as vibrations, noise and exhaust fumes at all times. Just like its "little brothers", the agria 9500-80 and agria 9500-70, the agria 9500-90 is equipped with maintenance-free, brushless Electric motors and Generator and operates with a high level of performance and fuel efficiency thanks to the electric hybrid Drive. Equipped with Branch deflector and brush guard, it can also be used in dense vegetation such as bramble hedges or young trees without any problems.

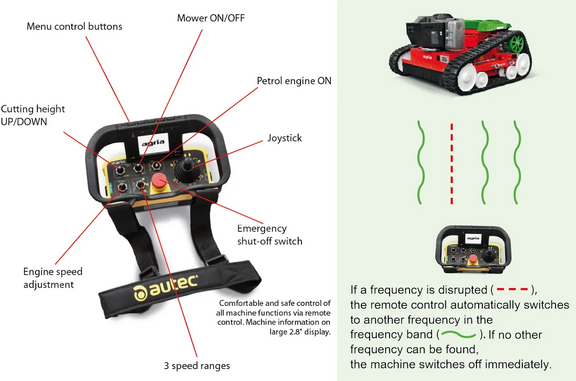

It's all in your hands

Thanks to Remote Control, you are always in a safe position and are protected from stresses such as dust, vibrations, noise and exhaust fumes. The 2.8" display also keeps you informed about the status of the device, the currently set Cutting height and the speed.

Green space maintenance

The agria 9500-90 impresses in green space maintenance with its exceptional climbing ability, enormous cutting power and reliable insert on a wide variety of vegetation. Whether tall grass areas, roadside greenery, embankments or extensively used meadows - the remote-controlled caterpillar mower delivers a uniform cutting pattern and continues to work safely even where conventional machines reach their limits. The low overall height and wide crawler chassis ensure optimum traction and soil protection, while the powerful sickle mulching unit efficiently mows large areas. This makes the agria 9500-90 the first choice for farms that require safe, economical and sustainable green space maintenance, even under extreme operating conditions.

Machine equipment and information

The advantages at a glance

  • Versatile use thanks to 90 cm cutting width Powerful professional motors
  • Clean cutting pattern even on visible surfaces, e.g. in parks and gardens
  • Maintenance-free, brushless Electric motors and Generator
  • Excellent mulching result when driving forwards and backwards. No unnecessary turning maneuvers required
  • Protects the turf thanks to low Weight and Crawler tracks

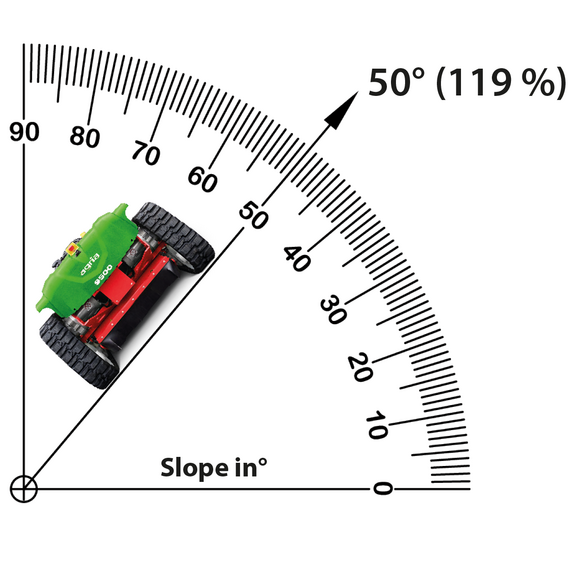

  • Extremely maneuverable handling even on steep slopes up to 50° (119 %)

Security:

  • Protection against stone chipping
  • Emergency stop cpl. on the device
  • Emergency stop cpl. on the remote control
  • Automatic switch-off in the event of loss of transmission signal
  • Protective extra-low voltage 48 V
  • Electromechanical Sicherheitsbremse
  • Transport locking
  • Operating instructions available at any time via QR code

Suitable attachments

Options

News

agria 9600 and agria 9500 at Matériel et Paysage

Powerful mowers in action – agria 9600 and agria 9500 put to the test at Matériel et Paysage

Remote-controlled power for extreme terrain: Discover the enthusiastic report on our agria 9600 and agria 9500 in the French trade magazine "Matériel…

Read more
agria 9500-90 in tall grass

Novelty: agria 9500-90

Agria expands the mower family

Read more

Technical data

agria 9500-90

Item number9500 321
EngineKawasaki FS730V EFI
Air-cooled 2-cylinder 4-stroke OHV
Benzinmotor 17,7 kW (24,0 HP)
Engine torque53.4 Nm at 2,400 rpm
Fuel system1 x 10 liter; agria interchangeable tank system
Traction driveStepless and brushless electric drive, 48 V DC, safety extra-low voltage
Drive stages/
Speed
3 stepless speed ranges selectable:
Range 1: 0 - 2 km/h, Range 2: 0 - 3.8 km/h, Range 3: 0 - 5.8 km/h
BrakeElectromechanical fail-safe Brake
Slope capability50° (119 %)
MowerHigh-grass sickle mower
Blades1 Blade support with Wildwuchsmesser with Pendelklingen (4 blades)
Cutter DriveBelt drive with Electromagnetic clutch
Working width90 cm
Cutting height50 - 150 mm, adjustment by remote control
Area outputmax. 3,500 m²/h at 5 km/h
Radio control unitAutec safety RC system with 2.8 inch display
Max. Maximum rangemax. 300 m
Recommended max. working rangemax. 100 m
Inclinometer for remote control-
Dimensions L x B x H125 x 126 x 68 - 79 cm
Ground pressure0.13 kg/cm²
Weight (with full Fuel cans)approx. 412 kg

- Standard equipment

Videos

Product video - The flexible caterpillar mower for visible areas and undergrowth: agria 9500

Due to constant further development, we reserve the right to make changes to the scope of delivery in terms of form, technology and equipment. No claims can therefore be derived from the information and illustrations. Some product illustrations do not correspond to the delivery version and may contain accessories.
Weight specifications: without fuel, without oil and partly without Set of tires.
