agria 9500-80

Remote controlled high grass rotary mulcher

The versatile powerhouse

The agria 9500-80 is a compact, remote-controlled Implement carrier that ideally combines power, precision and safety. Its powerful Kawasaki-Motor, low machine weight and easy-grip crawler chassis make it a reliable solution for demanding areas and steep slopes of up to 50°. Thanks to the Remote Control, the operator works outside the danger zone at all times and remains free from noise, vibrations and exhaust fumes. With its 80 cm cutting width, the machine can be used efficiently even in confined areas and offers maximum flexibility for professional use. The agria 9500-80 impresses with its maneuverability, safe traction and high area output - wherever conventional machines reach their limits.

Electrical height adjustment

The electrical Cutting height adjustment allows the cutting height to be continuously adjusted between 50 and 130 mm using the Remote Control. You can read the set Cutting height on the Remote Control display.

Interchangeable tank system

The agria interchangeable tank system makes refueling easy and safe, even in difficult terrain. The standard 5 liter canisters (agria 9500-70) / 10 liter canisters (agria 9500-80/ agria 9500-90) can be easily removed, replaced and reconnected. This means that Insert can even be used in water protection areas without any problems. The fuel quantity is sufficient for an insert of approx. 3 hours (agria 9500-70 premium) / 5 hours (agria 9500-80 premium) / 4.5 hours (agria 9500-90 premium).

Green space maintenance

The agria 9500-80 shows its full strength in green space maintenance. The integrated sickle mulching unit enables mulching both forwards and backwards - without time-consuming turning maneuvers, without unnecessary soil compaction and without risk for the operator on steep slopes. The machine works precisely, powerfully and is particularly gentle on the soil, as the lightweight crawler chassis guards the turf and ensures clean work results even on sensitive areas. Whether for Kommunal green spaces, embankments, verges or extensively used meadows: The agria 9500-80 combines high area output with safe handling and delivers a convincingly even mowing pattern even in difficult conditions.

Machine equipment and information

The advantages at a glance

  • Versatile use thanks to 80 cm cutting width Powerful professional motors
  • Guard against direct stresses such as vibrations, noise and exhaust fumes
  • Even distribution of the clippings
  • Clean cut pattern even on visible surfaces, e.g. in parks and gardens
  • Maintenance-free, brushless Electric motors and Generator
  • Fuel-saving and high performance thanks to electric hybrid drive
  • Excellent mulching results when driving forwards and backwards. No unnecessary turning maneuvers required
  • Protects the turf thanks to low Weight and Crawler tracks
  • Extremely manoeuvrable driving characteristics even on steep slopes of up to 50° (119 %)

Suitable attachments

Options

Technical data

agria 9500-80

Item number9500 541
EngineKawasaki FS 600V
2-cylinder 4-stroke petrol engine
12.7 kW (17.3 hp) *
Torque40.4 Nm at 2,200 rpm
Fuel system1 x 10 liter; agria interchangeable tank system
Traction driveStepless and brushless electric drive, 48 V DC, safety extra-low voltage
Drive stages/
Speed
3 stepless speed ranges selectable:
Range 1: 0 - 2 km/h, Range 2: 0 - 3.8 km/h, Range 3: 0 - 5.8 km/h
BrakeElectromechanical fail-safe Brake

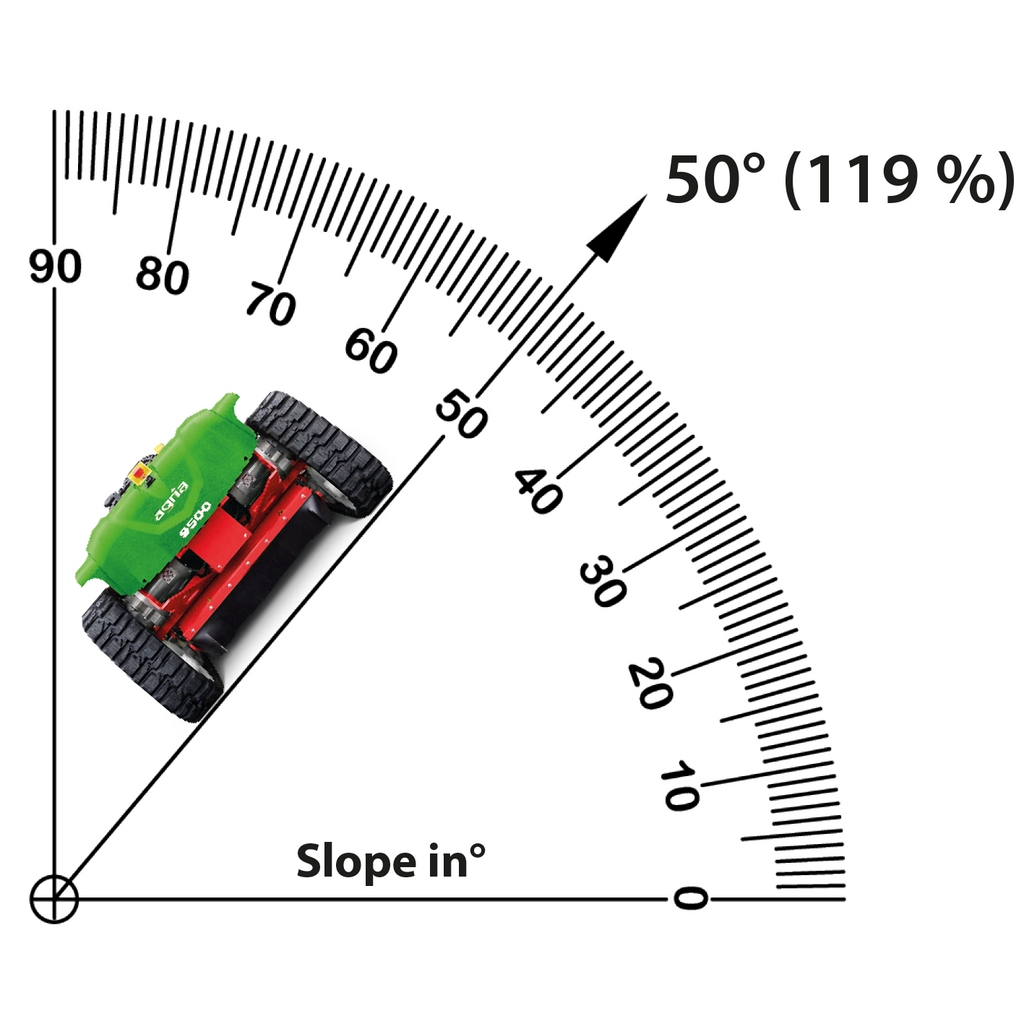

Slope capability50° (119 %)
MowerHigh-grass sickle mower
Blades1 Blade support with Wildwuchsmesser with Pendelklingen (4 blades)
Cutter DriveBelt drive with Electromagnetic clutch
Working width80 cm
Cutting height50 - 150 mm, adjustment by remote control
Area outputmax. 3,000 m²/h at 5 km/h
Radio control unitAutec safety RC system with 2.8 inch display
Max. Maximum rangemax. 300 m
Recommended max. working rangemax. 100 m
Inclinometer for remote control-
Dimensions L x B x H120 x 116 x 65 - 75 cm
Ground pressure0.08 kg/cm²
Weight (with full Fuel cans)approx. 372 kg

- Standard equipment
* More powerful Engine on request and subject to availability

Videos

Product video - The flexible caterpillar mower for visible areas and undergrowth: agria 9500

Due to constant further development, we reserve the right to make changes to the scope of delivery in terms of form, technology and equipment. No claims can therefore be derived from the information and illustrations. Some product illustrations do not correspond to the delivery version and may contain accessories.
Weight specifications: without fuel, without oil and partly without Set of tires.
